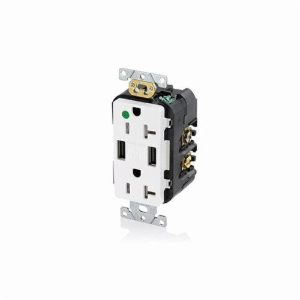

Leviton® T5632-HGW Type A Duplex Tamper-Resistant Receptacle and USB Charger, 15 A/125 VAC/0.5 hp, 2 Poles, 3 Wires, White
$0.00Â /Â Each
- Amperage Rating :15 A
- Color :White
- Manufacturer Name :Leviton
- NEMA Rating :NEMA 5-15R
- Number of Poles :2
- Number of Wires :3
Technical Specifications
Brand
Amperage Rating
15 A
Color
White
Manufacturer Name
Leviton
NEMA Rating
NEMA 5-15R
Number of Poles
2
Number of Wires
3
Tamper-Resistant
Tamper-Resistant
Type
Duplex
Voltage Rating
125 VAC/5 VDC
USB Type
Type-A
USB Quantity
2
USB Rating
3.6 A
Leviton® Receptacle and USB Charger, Type A Duplex Tamper-Resistant, 15 A/125 VAC/0.5 hp Electrical Rating, 2 Pole, 3 Wires, 14 to 12 AWG Wire, Type-A USB 2.0 USB, 3.6 A at 5 VDC USB, 4.04 in H x 1.73 in W x 1.67 in D Size, Back/Side Wired Connection, Wall Mounting, Hospital Grade, Polybutylene Terephthalate/Thermoplastic Polyester Resin, White, Environmental Conditions: -10 to 40 deg C Operating Temperature
