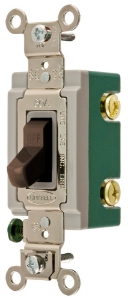

Wiring Device-Kellems HBL3032 HBL® Extra Heavy Duty Standard AC Toggle Switch, 120/277 VAC, 30 A, 2 hp, 8310 W Power Rating, 2-Position Contact
$0.00Â /Â Each
- Amperage Rating :30 A
- Color :Brown
- Manufacturer Name :Hubbell
- Number of Poles :2
- Voltage Rating :120/277 VAC
Technical Specifications
Amperage Rating
30 A
Color
Brown
Manufacturer Name
Hubbell
Number of Poles
2
Voltage Rating
120/277 VAC
Wiring Device-Kellems AC Toggle Switch, Extra Heavy Duty Standard, Series: HBL®, 120/277 VAC, 30 A, 2 hp, 8310 W Power, 2-Position Contact Configuration, 2 Pole, Toggle Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoset, Brown, Environmental Conditions: -40 to 75 deg C Operating Temperature, 4.06 in H x 1.31 in W x 2.93 in D Dimensions
