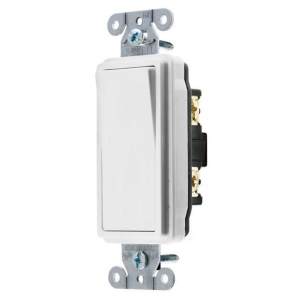

Wiring Device-Kellems StyleLine® DS120W Decorator General Purpose Self-Grounding Specification Grade Standard Decorator Switch, 120/277 VAC, 20 A, 5540 W Power Rating, 2-Position Contact
$16.25Â /Â Each
Regular Price: $18.89, you save $2.64 (14%)- Amperage Rating :20 A
- Color :White
- Manufacturer Name :Hubbell
- Number of Poles :1
- Voltage Rating :120/277 VAC
Technical Specifications
Amperage Rating
20 A
Color
White
Manufacturer Name
Hubbell
Number of Poles
1
Voltage Rating
120/277 VAC
Wiring Device-Kellems StyleLine® Decorator Switch, General Purpose Self-Grounding Specification Grade Standard, Series: Decorator, 120/277 VAC, 20 A, 5540 W Power, 2-Position Contact Configuration, 20 A at 120/277 VAC Contact, 1 Pole, Positive Snap Action, Rocker Actuator, Threaded Mounting, Screw Terminal, 50000 Cycles Operating Cycles, Composite, White, Environmental Conditions: -40 to 75 deg C Operating Temperature, 4.276 in H x 1.435 in W x 1.539 in D Dimensions
