Sta-KonĀ® 14RB-2577 250 Female Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Brass, Blue, Fully Insulated
$1.46Ā /Ā Each
- Barrel Type :Brazed Seam
- Voltage Rating :600 VAC
- Color :Blue
- Temperature Rating :105 deg C
- Conductor Size :16 to 14 AWG

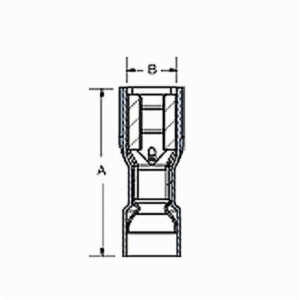

- Dimensions :1.01 in L x 0.38 in W
Technical Specifications
Brand
Barrel Type
Brazed Seam
Voltage Rating
600 VAC
Color
Blue
Temperature Rating
105 deg C
Conductor Size
16 to 14 AWG
Dimensions
1.01 in L x 0.38 in W
Finish
Electroplated Tin
Manufacturer Name
Thomas & Betts
Material
Brass
Sta-KonĀ® Female Disconnect, Series: 250, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Crimp Terminal, 600 VAC, 0.185 in Dia Maximum Insulation, 0.03 in THK Stock, 105 deg C, Brass, Blue, Electroplated Tin, 1.01 in L x 0.38 in W, Insulated: Fully Insulated
