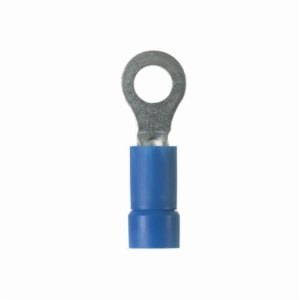

Panduit® Pan-Term™ PV14-10R-M Type PV-R Loose Piece Ring Terminal, 14 AWG Conductor, 0.92 in L, Brazed Seam/Butted Seam/Funnel Entry/Insulation Support/Internal Serration Barrel, Copper, Blue
$0.21 / Each
- Barrel Type :Brazed Seam/Butted Seam/Funnel Entry/Insulation Support/Internal Serration
- Type :Type PV-R Loose Piece
- Voltage Rating :600 V
- Color :Blue
- Temperature Rating :221 deg F
- Conductor Size :14 AWG
Technical Specifications
Brand
Barrel Type
Brazed Seam/Butted Seam/Funnel Entry/Insulation Support/Internal Serration
Type
Type PV-R Loose Piece
Voltage Rating
600 V
Color
Blue
Temperature Rating
221 deg F
Conductor Size
14 AWG
Conductor Type
Solid/Stranded
Finish
Tin Plated
Length
0.92 in
Manufacturer Name
Panduit
Material
Copper
Panduit® Pan-Term™ Ring Terminal, Type PV-R Loose Piece, Solid/Stranded Conductor, 14 AWG Conductor, #10 Stud, 0.92 in Length, Brazed Seam/Butted Seam/Funnel Entry/Insulation Support/Internal Serration Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 V, Specifications: 1/4 in Clearance, 5/16 in L Wire Strip, 5/16 in Mounting Hole Size, Ring Shape Enclosure, Vinyl Insulation, 221 deg F, Copper, Tin Plated, Blue
