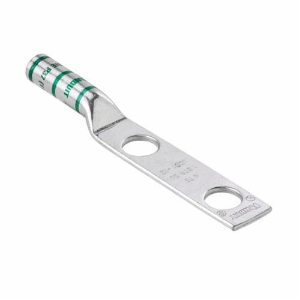

Panduit® Pan-Lug™ LCC500-12-6 2-Hole Compression Lug Connector, 500 kcmil Stranded Copper Conductor, Die Code: P87, 1/2 in Stud, Copper
$32.10 / Each
Regular Price: $45.86, you save $13.76 (30%)- Type :Compression
- Stud Size :1/2 in
- Voltage Rating :35 kV
- Color :Brown
- Material :Copper
- Number of Bolt Holes :2
Technical Specifications
Brand
Type
Compression
Stud Size
1/2 in
Voltage Rating
35 kV
Color
Brown
Material
Copper
Number of Bolt Holes
2
Conductor Size
500 kcmil
Conductor Type
Stranded Copper
Dimensions
2.5 in L x 1.54 in W
Finish
Tin Plated
Manufacturer Name
Panduit
Panduit® Pan-Lug™ Compression Lug Connector, 2-Hole, Series: LCC, Stranded Copper Conductor, 500 kcmil Conductor, Die Code: P87, 35 kV, 1/2 in Stud, Standard/Straight Tongue, 1.54 in W x 0.22 in THK Tongue, 6.36 in Overall Length, Long/Standard without Inspection Window Barrel, 0.84 in ID x 1.06 in OD x 2.5 in L Barrel, Specifications: 1-3/4 in Stud Hole Spacing, 2-9/16 in L Wire Strip, Tin Plated, 90 deg C, 2-5/8 in Mounting Hole, Copper, Brown
