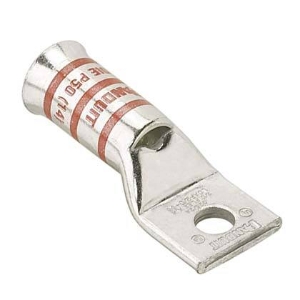

Panduit® Pan-Lug™ LCAF4/0-38-X 1-Hole Compression Connector Lug, 4/0 AWG Flexible Copper Conductor, Die Code: P62, 3/8 in Stud, Tin Plated Copper
$13.34Â /Â Each
Regular Price: $19.05, you save $5.72 (30%)- Type :Compression
- Stud Size :3/8 in
- Voltage Rating :35 kV
- Color :Yellow
- Material :Tin Plated Copper
- Number of Bolt Holes :1
Technical Specifications
Brand
Type
Compression
Stud Size
3/8 in
Voltage Rating
35 kV
Color
Yellow
Material
Tin Plated Copper
Number of Bolt Holes
1
Conductor Size
4/0 AWG
Conductor Type
Flexible
Dimensions
1.35 in L x 1.17 in W
Finish
Tin Plated
Manufacturer Name
Panduit
Panduit® Pan-Lug™ Compression Connector Lug, 1-Hole, Series: LCAF, Flexible Copper Conductor, 4/0 AWG Conductor, Die Code: P62, 35 kV, 3/8 in Stud, Flared/Straight Tongue, 1.17 in W x 0.14 in THK Tongue, 2.65 in Overall Length, Standard Barrel, 0.63 in ID x 0.91 in OD x 1.35 in L Barrel, 1-7/16 in L Wire Strip, 90 deg C, 14-3/8 in Mounting Hole, Tin Plated Copper, Yellow
