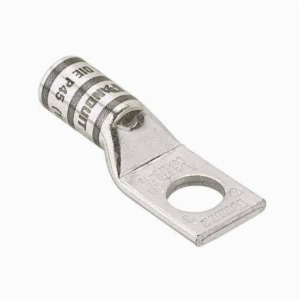

Panduit® Pan-Lug™ LCA4-14-L 1-Hole Compression Connector Lug With Inspection Window, 4 to 3 AWG, 2 AWG Solid/Stranded Copper Conductor, Die Code: P29, 1/4 in Stud, Tin Plated Copper
$2.92Â /Â Each
Regular Price: $4.17, you save $1.25 (30%)- Type :Compression
- Stud Size :1/4 in
- Voltage Rating :35 kV
- Color :Gray
- Material :Copper
- Number of Bolt Holes :1
Technical Specifications
Brand
Type
Compression
Stud Size
1/4 in
Voltage Rating
35 kV
Color
Gray
Material
Copper
Number of Bolt Holes
1
Conductor Size
4 AWG
Conductor Type
Code Copper
Dimensions
0.81 in L x 0.55 in W
Finish
Tin Plated
Manufacturer Name
Panduit
Panduit® Pan-Lug™ Compression Connector Lug, 1-Hole, Series: LCA, Solid/Stranded Copper Conductor, 4 to 3 AWG, 2 AWG Conductor, Die Code: P29, 35 kV, 1/4 in Stud, Straight Tongue, 0.55 in W x 0.09 in THK Tongue, 1.63 in Overall Length, Standard Barrel, 0.28 in ID x 0.38 in OD x 0.81 in L Barrel, 7/8 in L Wire Strip, 90 deg C, 7/8 in Mounting Hole, Tin Plated Copper, Gray
