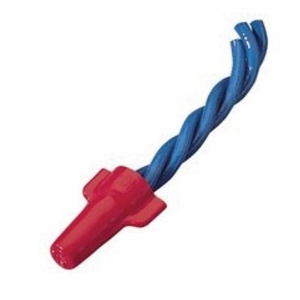

IDEALĀ® Wing-NutĀ® 30-452 452Ā® Flame-Retardant Wire Connector, Winged Shell, Live Action/Square Wire Spring, 18 to 8 AWG Solid/Stranded Wire, Polypropylene, Box of 100
$47.71Ā /Ā Box
Regular Price: $58.19, you save $10.47 (18%)- Wire Type :Solid/Stranded
- Type :Flame-Retardant
- Voltage Rating :600 VAC
- Color :Red
- Material :Polypropylene
- Temperature Rating :221 deg F
Technical Specifications
Brand
Wire Type
Solid/Stranded
Type
Flame-Retardant
Voltage Rating
600 VAC
Color
Red
Material
Polypropylene
Temperature Rating
221 deg F
Dimensions
0.6 in Dia x 1.234375 in W x 0.9375 in H
Finish
Zinc Plated
Manufacturer Name
Ideal Industries
Series
452®
Wire Size
18 to 8 AWG
IDEALĀ® Wing-NutĀ® Wire Connector, Flame-Retardant, Series: 452Ā®, Winged Shell Style, Live Action/Square Wire Spring, Solid/Stranded Wire, 18 to 8 AWG Wire, 600 VAC, Specifications: 1/2 in Solid/Stranded Wire Strip, 1 to 6 Conductors, 18 to 2 AWG Minimum, 10 to 4 AWG Maximum Conductor Combination Size, 221 deg F, Polypropylene, Red, Zinc Plated, 0.6 in Dia x 1.234375 in W x 0.9375 in H Dimensionsļ»æ, Box of 100
