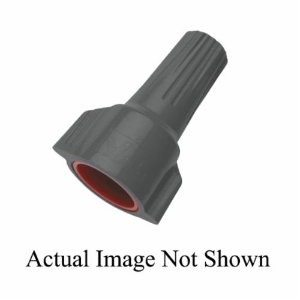

IDEAL® WEATHERPROOF® 30-1162 62® Series Wire Connector, Winged Shell, Live Action/Square Wire Spring, 18 to 8 AWG Solid/Stranded Copper Wire, Thermoplastic Polyester
$45.98Â /Â Package
Regular Price: $56.08, you save $10.09 (18%)- Wire Type :Solid/Stranded Copper
- Voltage Rating :600 VAC
- Color :Gray/Red
- Material :Thermoplastic Polyester
- Temperature Rating :105 deg C
- Dimensions :0.68 in Dia x 0.9375 in W x 1.34375 in H
Technical Specifications
Brand
Wire Type
Solid/Stranded Copper
Voltage Rating
600 VAC
Color
Gray/Red
Material
Thermoplastic Polyester
Temperature Rating
105 deg C
Dimensions
0.68 in Dia x 0.9375 in W x 1.34375 in H
Manufacturer Name
Ideal Industries
Series
62® Series
Wire Size
18 to 8 AWG
IDEAL® WEATHERPROOF® Wire Connector, Series: 62® Series, Winged Shell Style, Live Action/Square Wire Spring, Solid/Stranded Copper Wire, 18 to 8 AWG Wire, 600 VAC, Specifications: 1/2 in Wire Strip, (2) 18 AWG Minimum, (3) 10 AWG Maximum Conductor Combination Size, 105 deg C, Thermoplastic Polyester, Gray/Red, 0.68 in Dia x 0.9375 in W x 1.34375 in H Dimensions
