Hammond Power Solutions SP750ACP

Share:

HPS SP750ACP
Known As:
What's your slang?Submit what you call this part (This will help with search).Please Sign-in to Submit Slang Terms

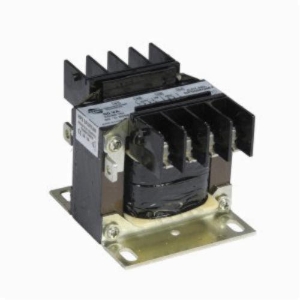

HPS SP750ACP Spartan® Dry Type Control Transformer, 480/600 VAC Primary, 120/240 VAC Secondary, 750 VA Power Rating, 60 Hz, 1 Phase
Gerrie Part #: SP750ACP
 |
MFR Part #: SP750ACP
 |
$321.00 / Each
  • Primary Voltage :480/600 VAC
  • Secondary Voltage :120/240 VAC
  • Power Rating :750 VA
  • Enclosure Type :Open/Core and Coil
  • Connection Type :Screw
  • Frequency Rating :60 Hz
Technical Specifications
Primary Voltage
480/600 VAC
Secondary Voltage
120/240 VAC
Power Rating
750 VA
Enclosure Type
Open/Core and Coil
Connection Type
Screw
Frequency Rating
60 Hz
Phase
1
Type
Dry Type
Dimensions
5.25 in L x 5.08 in W x 4.37 in H
Insulation
130 deg C
Manufacturer Name
Hammond Power Solutions
Maximum Amperage Rating
6.25/3.13 A
Mounting Type
Panel
Temperature Rating
40 deg C
HPS, SP750ACP, Control Transformer, Dry Type, Series: Spartan®, 480/600 VAC Primary, 120/240 VAC Secondary, 750 VA Power, 60 Hz Frequency, 1 ph, 6.25/3.13 A Maximum, Screw Connection, Panel Mounting, 130 deg C Insulation, Open/Core and Coil Enclosure, 40 deg C, 5.25 in L x 5.08 in W x 4.37 in H Dimensions
