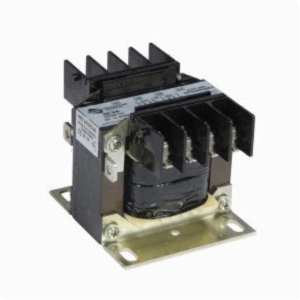

HPS SP50ACP Spartan® Dry Type Control Transformer, 480/600 VAC Primary, 120/240 VAC Secondary, 50 VA Power Rating, 60 Hz, 1 Phase
$67.70Â /Â Each
- Primary Voltage :480/600 VAC
- Secondary Voltage :120/240 VAC
- Power Rating :50 VA
- Enclosure Type :Open/Core and Coil
- Connection Type :Screw
- Frequency Rating :60 Hz
Technical Specifications
Primary Voltage
480/600 VAC
Secondary Voltage
120/240 VAC
Power Rating
50 VA
Enclosure Type
Open/Core and Coil
Connection Type
Screw
Frequency Rating
60 Hz
Phase
1
Type
Dry Type
Dimensions
2.6 in L x 3.82 in W x 2.6 in H
Insulation
130 deg C
Manufacturer Name
Hammond Power Solutions
Maximum Amperage Rating
0.42/0.21 A
Mounting Type
Panel
Temperature Rating
40 deg C
HPS, SP50ACP, Control Transformer, Dry Type, Series: Spartan®, 480/600 VAC Primary, 120/240 VAC Secondary, 50 VA Power, 60 Hz Frequency, 1 ph, 0.42/0.21 A Maximum, Screw Connection, Panel Mounting, 130 deg C Insulation, Open/Core and Coil Enclosure, 40 deg C, 2.6 in L x 3.82 in W x 2.6 in H Dimensions
