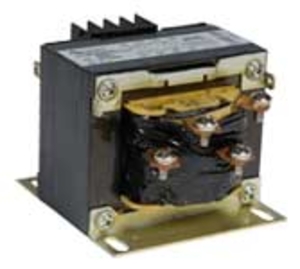

HPS SP500SR Spartan® Dry Type Control Transformer, 208/416 VAC Primary, 12/24 VAC Secondary, 500 VA Power Rating, 50 Hz, 1 Phase
$231.00Â /Â Each
- Primary Voltage :208/416 VAC
- Secondary Voltage :12/24 VAC
- Power Rating :500 VA
- Enclosure Type :Open/Core and Coil
- Connection Type :Coil Face/Terminal Block
- Frequency Rating :50 Hz
Technical Specifications
Primary Voltage
208/416 VAC
Secondary Voltage
12/24 VAC
Power Rating
500 VA
Enclosure Type
Open/Core and Coil
Connection Type
Coil Face/Terminal Block
Frequency Rating
50 Hz
Phase
1
Type
Dry Type
Dimensions
4.49 in L x 5.47 in W x 3.78 in H
Insulation
130 deg C
Manufacturer Name
Hammond Power Solutions
Maximum Amperage Rating
41.7/20.8 A
Mounting Type
Panel
Temperature Rating
40 deg C
HPS, SP500SR, Control Transformer, Dry Type, Series: Spartan®, 208/416 VAC Primary, 12/24 VAC Secondary, 500 VA Power, 50 Hz Frequency, 1 ph, 41.7/20.8 A Maximum, Coil Face/Terminal Block Connection, Panel Mounting, 130 deg C Insulation, 40 deg C, 4.49 in L x 5.47 in W x 3.78 in H Dimensions
