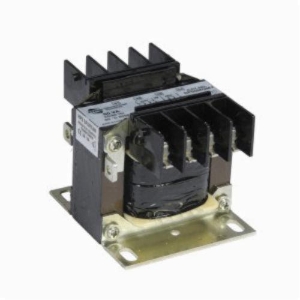

HPS SP500MQMJ Spartan® Dry Type Control Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 500 VA Power Rating, 50 Hz, 1 Phase
$231.00Â /Â Each
- Primary Voltage :240/480 VAC
- Secondary Voltage :120/240 VAC
- Power Rating :500 VA
- Enclosure Type :Open/Core and Coil
- Connection Type :Screw
- Frequency Rating :50 Hz
Technical Specifications
Primary Voltage
240/480 VAC
Secondary Voltage
120/240 VAC
Power Rating
500 VA
Enclosure Type
Open/Core and Coil
Connection Type
Screw
Frequency Rating
50 Hz
Phase
1
Type
Dry Type
Dimensions
4.49 in L x 4.69 in W x 3.78 in H
Insulation
130 deg C
Manufacturer Name
Hammond Power Solutions
Maximum Amperage Rating
4.17/2.08 A
Mounting Type
Panel
Temperature Rating
40 deg C
HPS, SP500MQMJ, Control Transformer, Dry Type, Series: Spartan®, 240/480 VAC Primary, 120/240 VAC Secondary, 500 VA Power, 50 Hz Frequency, 1 ph, 4.17/2.08 A Maximum, Screw Connection, Panel Mounting, 130 deg C Insulation, Open/Core and Coil Enclosure, 40 deg C, 4.49 in L x 4.69 in W x 3.78 in H Dimensions
