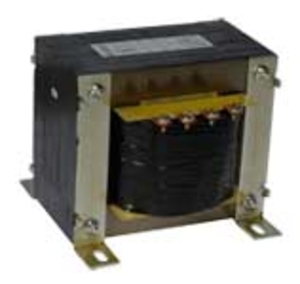

HPS SP3000MQMJ Spartan® Dry Type Control Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 3000 VA Power Rating, 50 Hz, 1 Phase
$995.00Â /Â Each
- Primary Voltage :240/480 VAC
- Secondary Voltage :120/240 VAC
- Power Rating :3000 VA
- Enclosure Type :Open/Core and Coil
- Connection Type :Screw
- Frequency Rating :50 Hz
Technical Specifications
Primary Voltage
240/480 VAC
Secondary Voltage
120/240 VAC
Power Rating
3000 VA
Enclosure Type
Open/Core and Coil
Connection Type
Screw
Frequency Rating
50 Hz
Phase
1
Type
Dry Type
Dimensions
7-1/2 in L x 7-1/2 in W x 6-1/2 in H
Insulation
180 deg C
Manufacturer Name
Hammond Power Solutions
Maximum Amperage Rating
25/12.5 A
Mounting Type
Panel
Temperature Rating
40 deg C
HPS, SP3000MQMJ, Control Transformer, Dry Type, Series: Spartan®, 240/480 VAC Primary, 120/240 VAC Secondary, 3000 VA Power, 50 Hz Frequency, 1 ph, 25/12.5 A Maximum, Screw Connection, Panel Mounting, 180 deg C Insulation, Open/Core and Coil Enclosure, 40 deg C, 7-1/2 in L x 7-1/2 in W x 6-1/2 in H Dimensions
