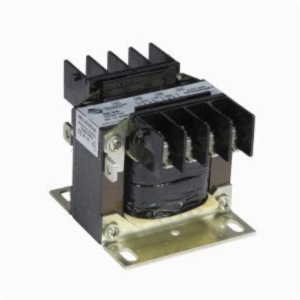

HPS SP2000MQMJ Spartan® Dry Type Control Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 2000 VA Power Rating, 50/60 Hz, 1 Phase
$655.00Â /Â Each
- Primary Voltage :240/480 VAC
- Secondary Voltage :120/240 VAC
- Power Rating :2000 VA
- Enclosure Type :Open/Core and Coil
- Connection Type :Screw
- Frequency Rating :50/60 Hz
Technical Specifications
Primary Voltage
240/480 VAC
Secondary Voltage
120/240 VAC
Power Rating
2000 VA
Enclosure Type
Open/Core and Coil
Connection Type
Screw
Frequency Rating
50/60 Hz
Phase
1
Type
Dry Type
Dimensions
6.38 in L x 5.87 in W x 5.31 in H
Insulation
180 deg C
Manufacturer Name
Hammond Power Solutions
Maximum Amperage Rating
16.7/8.33 A
Mounting Type
Panel
Temperature Rating
40 deg C
HPS, SP2000MQMJ, Control Transformer, Dry Type, Series: Spartan®, 240/480 VAC Primary, 120/240 VAC Secondary, 2000 VA Power, 50/60 Hz Frequency, 1 ph, 16.7/8.33 A Maximum, Screw Connection, Panel Mounting, 180 deg C Insulation, Open/Core and Coil Enclosure, 40 deg C, 6.38 in L x 5.87 in W x 5.31 in H Dimensions
