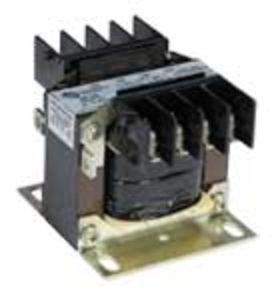

HPS SP1000ACP Spartan® Dry Type Control Transformer, 120/240 VAC Secondary, 1000 VA Power Rating, 60 Hz, 1 Phase
$380.00Â /Â Each
- Secondary Voltage :120/240 VAC
- Power Rating :1000 VA
- Enclosure Type :Open/Core and Coil
- Connection Type :Screw
- Frequency Rating :60 Hz
- Phase :1
Technical Specifications
Secondary Voltage
120/240 VAC
Power Rating
1000 VA
Enclosure Type
Open/Core and Coil
Connection Type
Screw
Frequency Rating
60 Hz
Phase
1
Type
Dry Type
Dimensions
5.25 in L x 5.47 in W x 4.37 in H
Insulation
130 deg C
Manufacturer Name
Hammond Power Solutions
Maximum Amperage Rating
8.33/4.17 A
Mounting Type
Panel
Temperature Rating
40 deg C
HPS, SP1000ACP, Control Transformer, Dry Type, Series: Spartan®, 120/240 VAC Secondary, 1000 VA Power, 60 Hz Frequency, 1 ph, 8.33/4.17 A Maximum, Screw Connection, Panel Mounting, 130 deg C Insulation, Open/Core and Coil Enclosure, 40 deg C, 5.25 in L x 5.47 in W x 4.37 in H Dimensions
