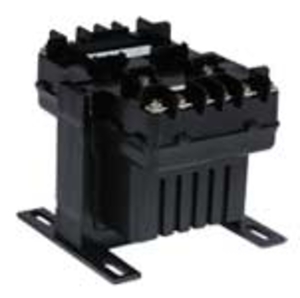

HPS PH250MEMX Imperator® Industrial Molded Open Style Control Transformer, 380/400/415 VAC Primary, 110/220 VAC Secondary, 250 VA Power Rating, 50/60 Hz, 1 Phase
$475.00Â /Â Each
- Primary Voltage :380/400/415 VAC
- Secondary Voltage :110/220 VAC
- Power Rating :250 VA
- Connection Type :Screw
- Frequency Rating :50/60 Hz
- Phase :1
Technical Specifications
Primary Voltage
380/400/415 VAC
Secondary Voltage
110/220 VAC
Power Rating
250 VA
Connection Type
Screw
Frequency Rating
50/60 Hz
Phase
1
Type
Industrial Molded Open Style
Dimensions
4.5 in L x 5.44 in W x 3.81 in H
Insulation
130 deg C
Manufacturer Name
Hammond Power Solutions
Maximum Amperage Rating
2.27/1.14 A
Mounting Type
Panel
Temperature Rating
30 deg C
HPS, PH250MEMX, Control Transformer, Industrial Molded Open Style, Series: Imperator®, 380/400/415 VAC Primary, 110/220 VAC Secondary, 250 VA Power, 50/60 Hz Frequency, 1 ph, 2.27/1.14 A Maximum, Screw Connection, Panel Mounting, 130 deg C Insulation, 30 deg C, 4.5 in L x 5.44 in W x 3.81 in H Dimensions
