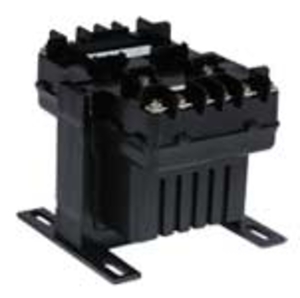

HPS PH1000MQMJ Imperator® Industrial Molded Open Style Control Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 1000 VA Power Rating, 50/60 Hz, 1 Phase
$915.00Â /Â Each
- Primary Voltage :240/480 VAC
- Secondary Voltage :120/240 VAC
- Power Rating :1000 VA
- Connection Type :Screw
- Frequency Rating :50/60 Hz
- Phase :1
Technical Specifications
Primary Voltage
240/480 VAC
Secondary Voltage
120/240 VAC
Power Rating
1000 VA
Connection Type
Screw
Frequency Rating
50/60 Hz
Phase
1
Type
Industrial Molded Open Style
Dimensions
5.25 in L x 6.81 in W x 4.94 in H
Insulation
130 deg C
Manufacturer Name
Hammond Power Solutions
Maximum Amperage Rating
8.33/4.17 A
Mounting Type
Panel
Temperature Rating
30 deg C
HPS, PH1000MQMJ, Control Transformer, Industrial Molded Open Style, Series: Imperator®, 240/480 VAC Primary, 120/240 VAC Secondary, 1000 VA Power, 50/60 Hz Frequency, 1 ph, 8.33/4.17 A Maximum, Screw Connection, Panel Mounting, 130 deg C Insulation, 30 deg C, 5.25 in L x 6.81 in W x 4.94 in H Dimensions
