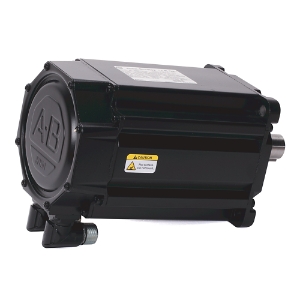

MP-Series MPL 480V AC Rotary Servo Motor
$ / Each
- Connectors :SpeedTEC DIN Connector, Right Angle, 180 Rotatable (Quick Connect)
- Enclosure :Keyless Shaft Extension
- Feedback :Single-turn High-resolution Encoder
- Frame Size :5 = 165 mm (6.50 in.)
- Manufacturer Name :Rockwell Automation
- Product Type :Bulletin MPL - Low-Inertia Brushless Servo Motors Product
Technical Specifications
Brand
Connectors
SpeedTEC DIN Connector, Right Angle, 180 Rotatable (Quick Connect)
Enclosure
Keyless Shaft Extension
Feedback
Single-turn High-resolution Encoder
Frame Size
5 = 165 mm (6.50 in.)
Manufacturer Name
Rockwell Automation
Product Type
Bulletin MPL - Low-Inertia Brushless Servo Motors Product
Voltage Rating
460 V
Servo Motor,Rotary,Low Inertia,IEC,480V AC,1024 Sin/Cos,4000 rpm Maximum,19.4 N-M,1/4 Turn Right Angle Rotatable DINConnector,Hiperface Single-Turn Absolute Encoder Feedback,No Brake,165 mm Bolt Circle Metric Flange Mounting,Keyless Shaft,Standard
