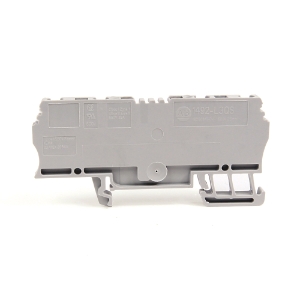

IEC Term Blck 5.1x79x31.3mm Spr Clp
$3.15 / Each
- Amperage Rating :21/24/25/27
- Base Block Style :Standard Feed-Through Blocks
- Base Block Type :One-Circuit Feed-Through Block
- Color :Gray
- Manufacturer Name :Rockwell Automation
- Standard :CCC, CE, CSA, CUL, KC, MARINE, UL
Technical Specifications
Brand
Amperage Rating
21/24/25/27
Base Block Style
Standard Feed-Through Blocks
Base Block Type
One-Circuit Feed-Through Block
Color
Gray
Manufacturer Name
Rockwell Automation
Standard
CCC, CE, CSA, CUL, KC, MARINE, UL
Voltage Rating
600 V
Wire Gauge
UR - #30...12 AWG, CSA - #26...12 AWG, IEC - 2.5mm , ATEX - #20...12 AWG
Wire Size
UR - #30...12 AWG, CSA - #26...12 AWG, IEC - 2.5mm , ATEX - #20...12 AWG
Terminal Block, Spring Clamp Connection, Feed Through with 3 Connection Points 2 on One Side, 5.1 x 79 x 31.3mm (0.20 x 3.11 x1.23 in), 1 Pole, Gray, Pkg. Qty. of 100, VOLTAGE RATING UR - 600V AC/DC, CSA - 600V AC/DC, IEC - 800V AC/DC, ATEX - 550V AC/D
