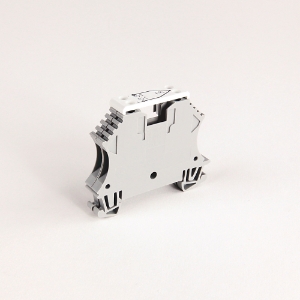

2.5 mm Triple Level Terminal Block
$16.53 / Each
- Amperage Rating :10/24
- Base Block Style :Multi-Circuit Feed-Through Blocks
- Base Block Type :Three-Circuit Feed-Through Block
- Color :Gray
- Manufacturer Name :Rockwell Automation
- Standard :CCC, CE, CSA, KC, UL
Technical Specifications
Brand
Amperage Rating
10/24
Base Block Style
Multi-Circuit Feed-Through Blocks
Base Block Type
Three-Circuit Feed-Through Block
Color
Gray
Manufacturer Name
Rockwell Automation
Standard
CCC, CE, CSA, KC, UL
Voltage Rating
300 V
Wire Gauge
UR - #22...12 AWG, CSA - #26...10 AWG, IEC - 0.5...2.5 mm
Wire Size
UR - #22...12 AWG, CSA - #26...10 AWG, IEC - 0.5...2.5 mm
Terminal Block, Screw Connection, Multi Level Feed Through 3 Circuit with Ground Point, 6.1 x 88 x 56.5mm (0.24 x 3.47 x 2.22 in),1 Pole, Gray, Pkg. Qty. of 50, VOLTAGE RATING UR - 300V AC/DC, CSA - 300V AC/DC, IEC - 400V AC/DC, MAXIMUM CURRENT RATING
