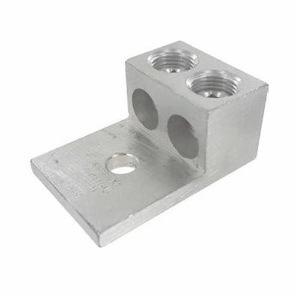

Aluminum 2-Conductor Lug 1-Hole Tongue 2 AWG–600 kcmil | Techspan® TSPL2A600

Techspan® Mechanical Connector, 2-Barrel, Stranded/Copper/Aluminum Conductor, 2 AWG to 600 kcmil Conductor, 1/2 in Stud, 1 Bolt Holes, 600 VAC, 90 deg C, 6061-T6 Aluminum, Electro-Tin Plated, 3.19 in W x 2.4 in D.

This aluminum dual rated lug is designed to connect and terminate two conductors using a one-hole tongue mounting design. Constructed from high-strength 6061-T6 aluminum, it is suitable for use with both copper and aluminum conductors, providing installation flexibility across a wide conductor range from 2 AWG to 600 kcmil.

The connector features an electro-tin plated finish that helps reduce contact resistance while providing protection against corrosion. Its dual-rated construction allows compatibility with copper and aluminum conductors, helping simplify inventory requirements for electrical installations.

Key features:

• Dual-rated for copper and aluminum conductors
• Two-barrel, one-hole mounting configuration
• High-strength 6061-T6 aluminum construction
• Electro-tin plated surface for corrosion resistance
• Reusable connector design
• cULus 486B listed
• Rated for 600 volts and 90°C operating temperature
• RoHS compliant

The lug is intended for electrical termination and connection applications requiring a two-conductor configuration. Its broad conductor acceptance range and standardized one-hole mounting design make it suitable for installations where secure conductor termination and code-compliant performance are required.

The compact design combines durability, conductivity, and installation flexibility while meeting recognized industry standards for electrical connectors.

Product Specifications:
