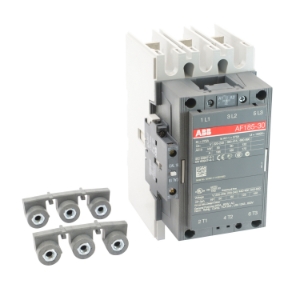

ABB AF185-30-11-72 AF185 IEC Contactor, 100 VAC, 250 VDC V Coil, 250 A, 3NO Contact, 3 Poles
$Â /Â Each
- Manufacturer Name :ABB
Technical Specifications
Brand
Manufacturer Name
ABB
ABB IEC Contactor, Series: AF185, 100 VAC, 250 VDC Coil, 250 A Maximum Load Current, 125 hp Coil, 3 Pole, 50/60 Hz Frequency, 132 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, Screw Terminal, IP20 Enclosure, 300 Cycles Operating Cycles, -25 to 50 deg C Operating, DIN Rail Mounting, 196 mm H x 111.5 mm W x 160 mm D Dimensions
