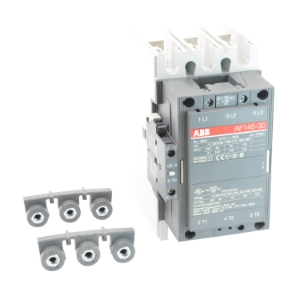

ABB AF145-30-11-72 AF Series 3-Phase Non-Reversing A-Line Contactor, 20 to 60 VDC V Coil, 130 A, 1NC-1NO Contact, 3 Poles
$Â /Â Each
- Manufacturer Name :ABB
Technical Specifications
Brand
Manufacturer Name
ABB
ABB, AF145-30-11-72, A-Line Contactor, 3-Phase Non-Reversing, Series: AF Series, 20 to 60 VDC Coil, 130 A Maximum Load Current, 40 hp, 50 hp, 100 hp, 125 hp Coil, 3 Pole, 40 to 60 Hz Frequency, 45/75/90/110 kW Wattage, 1NC-1NO Contact Configuration, 2 Auxiliary Contacts, NEMA A600/P600 Contact, AF145 Size, Screw Terminal, IP20 Enclosure, 5000000 Cycles Operating Cycles, 40 deg C Operating, 7.72 in H x 4.13 in W x 6.29 in D Dimensions
